ALUMINIUM POWDER & PASTE
Our marketing collaboration with Sri Kaliswari Metal Powder (P)Ltd. gives us the more refined edge in aluminium industry.

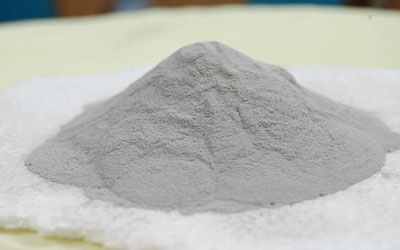

Aluminium powder is produced by presenting pure molten aluminium metal to a compressed gas jet and converting it to fine droplets, which are then solidified and collected.
Powders so collected are subsequently graded, depending on size, specification and application. The range of particle sizes of the product made in this way can be controlled to some extent by varying the nozzle opening, the air pressure and other factors.

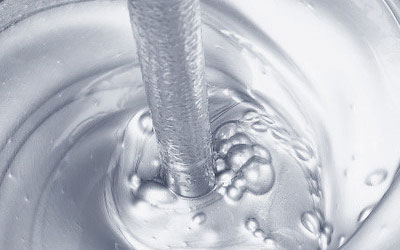

While, Aluminium paste is made from aluminium foil or aluminium powder, depending on the end use, by ball milling in white spirits solvent with lubricant present.
Cellular Concrete Aluminium Paste Specification
| characteristics | conc40 | conc50 | conc60 | conc75 | conc95M | conc95 |
|---|---|---|---|---|---|---|
| Non Volatile Content % (1) (Typical) | 70/80% | |||||
| Solvent (Diethylene Glycol - DEG) % | 30/20% | |||||
| Average Partical Size (Typical) Cilas 920 (2) in microns | 55 | 50 | 45 | 35 | 25 | <20 |
| Sieve Analysis (3) (Use water as Rinsing Liquid) | ||||||
| Passing through 45 microns | 45-55% | 55-65% | 65-75% | 7585% | 85-90% | 90% |
| Applications | For the manufacture of ACC Blocks | For the manufacture of ACC Blocks/Slabs | For the manufacture of ACC Blocks | |||
| Water Miscibility | 100% Miscible in water | |||||
| Packing | (i) 440 mm dia x 660 mm height MS Drum with full open mouth with locking ring (ii) 200 Liters capacity new MS barrels |
|||||
| Testing Procedures | (i) IS 289-1963 (ii) ASTM B 822-02 (iii) ISO 1247 |
|||||
Air Atomised Aluminium Powder Specifications
| characteristics | AP20 | AP50 | AP60 | AP80 |
|---|---|---|---|---|
| Aluminium Purity % min | 99.7 | 99.7 | 99.7 | 99.7 |
| Sieve Analysis | ||||
| Micron/ Mesh Retention 425/40 | 10% Max | |||
| Micron/ Mesh Retention 150/100 | 50-70% | |||
| Micron/ Mesh Retention 75/200 | 10-35% | |||
| Micron/ Mesh Passing 45/325 | 5% Max | |||
| Micron/ Mesh Retention 425/40 | NIL | |||
| Micron/ Mesh Retention 150/100 | 10% MAX | |||
| Micron/ Mesh Retention 75/200 | Reminder | |||
| Micron/ Mesh Passing 45/325 | 30% min | |||
| Micron/ Mesh Retention 425/40 | NIL | |||
| Micron/ Mesh Retention 150/100 | 5% Max | |||
| Micron/ Mesh Retention 75/200 | Reminder | |||
| Micron/ Mesh Passing 45/325 | 50% min | |||
| Micron/ Mesh Retention 425/40 | NIL | |||
| Micron/ Mesh Retention 150/100 | NIL | |||
| Micron/ Mesh Retention 75/200 | 3% min | |||
| Micron/ Mesh Passing 45/325 | 85% min | |||
| Applications | Ferro Alloys, Brake Linings and Thermit Welding |
Welding Electrodes, Foundry Fluxes, Chemical and Soldering Applications |
Refractory Industries, Solid Propellant Fules, Expoxy & vinyl Adhesives |
|
| Packing | 50 kg in polythene liend tar coated Hessian Bags/ 1250 Kgs net Jumbo Bags | |||
| Testing Procedures | (i) Purity-Atomic Absorpation Spectro Photometer Instument (ii) Sieve Analysis - ASTM B 214-07 (iii) Partide size distribution - Cilas 920 - ASTM B 822 - 02 (laser granulometry) |
|||
Pyrotechnic Aluminium Powder Specifications
| characteristics | PYRO 100 | PYRO 95 | PYRO 90 | PYRO 90 LD | PYRO 80 | PYRO 60 | PYRO 40 | PYRO 40 LD | PHOS 50 |
|---|---|---|---|---|---|---|---|---|---|
| Volatile Matter % (Max) (1) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Fatty Acid % (Max) (2) | 2 | 2 | 2 | 2 | 4 | 2 | 1 | 1 | Customer Specification |
| Metallic Aluminum % (min) (3) | 75 | 80 | 80 | 80 | 80 | 88 | 92 | 90 | 94 |
| Apparent Density gm/ cc (4) | 0.44-0.50 | 0.22-0.27 | 0.15-0.22 | 0.10-0.16 | 0.15-0.25 | 0.10-0.15 | 0.15-0.23 | 0.11-0.16 | Customer Specification |
| Water Covering Area cm2 /gm (min) (5) | Nil | 5000 | 6000 | 6500 | 10000 | 7000 | 3500 | 4000 | Customer Specification |
| Typical Sieve Analysis (6) | |||||||||
| Retained on 180 (Max) | Nil | Nil | Nil | Nil | Nil | 1% | 2% | 2% | Customer Specification |
| Passing through 45 (Min) | 98% | 88% | 85% | 80% | 85% | 65% | 30% | 30% | Customer Specification |
| Burning Property (7) | |||||||||
| Catching | Fast | Fast | Fast | Fast | Fast | Fast | Slow | Slow | Nill |
| Spreading (Secs) | 15-20 | 20-30 | 20-30 | 20-30 | 20-30 | 30-35 | Nill | Nill | Nill |
| Glowing (Secs) | 20-30 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | Nill | Nill | Nill |
| Application for the Manufacture of | Heavy Crackers | Heavy Crackers | Crackers | Crackers | Sparklers | Wheels | Flower Pots | Flower Pots | Pesticides |
| Packing (Kgs) | 50 | 50 | 40 | 35 | 40 | 30 | 35 | 30 | Customer Choice |
| Packing Drum Size | 1) 440 mm dia x 400 mm height with full open mouth with locking ring 2) 440 mm dia x 660 mm height with 7'' die mouth, inner lid and outer capseals |
||||||||
| Testing Procedures | (1) (2) (3) & (5) - IS:438 - 2006 (4) ASTM B 417 - 00 (2006) / IS 10441 - 1982 (6) ISO - 1247 (7) In-house procedure |
||||||||
Cellular Concrete Aluminium Powder Specifications
| characteristics | Conc 40 | Conc 50 | Conc 60 | Conc 75 | Conc 80 | Conc 85 | Conc 95 |
|---|---|---|---|---|---|---|---|
| Volatile Matter % (Max) (1) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Metallic Aluminium Content (Min) (2) | 94 | 93 | 92 | 91 | 91 | 90 | 89 |
| Density gm/ cc (3) | 0.12-0.17 | 0.12-0.17 | 0.12-0.17 | 0.12-0.18 | 0.12-0.17 | 0.12-0.17 | 0.13-0.20 |
| Average Partical Size (4) (Typical) Cilas 920 in microns | 50 | 45 | 35 | 30 | 25 | 18 | 15 |
| Sieve Analysis (5) (Use water as Rinsing Liquid) | |||||||
| Retained on 180 Microns | 3% (Max) | 2% (Max) | 2% (Max) | 2% (Max) | 2% (Max) | 1% (Max) | 1% (Max) |
| Passing through 45 Microns | 30-50% | 50-60% | 60-70% | 65-75% | 70-80% | >80% | >88% |
| Specific Surface Area (6) (Blain Value) Typical cm2 / gm (min) | 9000 | 10000 | 12000 | 12000 | 12000 | 15000 | 16000 |
| Gas reactivity test with Ca(OH)2 for0.07 gm of Aluminium Powder (7) (min) | 65ml of gas evolution within 16 minutes | ||||||
| Water Miscibility | 100% Miscible in water | ||||||
| Packing | (i) 440 mm dia x 660 mm height MS Drum with full open mouth with locking ring (ii) 200 Liters capacity new MS barrels |
||||||
| Testing Procedures | (1),(2) - IS:438 - 2006 (3) ASTM B 417 - 00 (2006) (4) ASTM B 422 - 02 (5) ISO - 1247 (6) ASTM C204-07 (7) In-house test method |
||||||
Aluminium Paste Leafing Grade
| Trade Mark | Non-Volatile content % Min (1) | WCA cm/gm (2) | Wet Sieve (3) |
Leafing Value % (4) | Average Particle Size (microns Cilas 920) | Solvent | Applications | |
|---|---|---|---|---|---|---|---|---|
| < 75 Microns | < 45 Microns | |||||||
| M 15 L | 65 | 14000 | 97 | 90 | 75 | 15 | M.T.O |  |
| N 15 L | Naptha | |
||||||
| T 15 L | Toluene | |
||||||
| X 15 L | Xylene | |
||||||
| M 20 L | 65 | 19000 | 99 | 97 | 75 | 13 | M.T.O |  |
| N 20 L | Naptha | |
||||||
| T 20 L | Toluene | |
||||||
| X 20 L | Xylene | |
||||||
| M 30 L | 64 | 27000 | 100 | 99 | 65 | 6 | M.T.O |  |
| N 30 L | Naptha | |
||||||
| T 30 L | Toluene | |
||||||
| X 30 L | Xylene | |
||||||
| M 35 L | 64 | 35000 | 100 | 99.5 | 65 | 5 | M.T.O |  |
| N 35 L | Naptha | |
||||||
| T 35 L | Toluene | |
||||||
| X 35 L | Xylene | |
||||||
Aluminium Paste Non-Leafing Grade
| Trade Mark | Non-Volatile content % Min (1) | Wet Sieve (3) |
Average Particle Size (microns Cilas 920) | Solvent | Applications | |
|---|---|---|---|---|---|---|
| < 75 Microns | < 45 Microns | |||||
| M 15 N | 65 | 97 | 90 | 15 | M.T.O |  |
| N 15 N | Naptha | |
||||
| T 15 N | Toluene | |
||||
| X 15 N | Xylene | |
||||
| M 20 N | 65 | 99 | 97 | 13 | M.T.O |  |
| N 20 N | Naptha | |
||||
| T 20 N | Toluene | |
||||
| X 20 N | Xylene | |
||||
| M 30 N | 64 | 100 | 99 | 6 | M.T.O |  |
| N 30 N | Naptha | |
||||
| T 30 N | Toluene | |
||||
| X 30 N | Xylene | |
||||
| M 35N | 64 | 100 | 99.5 | 5 | M.T.O | |
| N 35 N | Naptha | |
||||
| T 35 N | Toluene | |
||||
| X 35 N | Xylene | |
||||
| Testing Procedures | (1) IS : 289 - 1968 (2) (3) (4) iSO : - 1247 |
|||||
Industrial Roof Coating
Industrial Coating
Anti Corrosive, Heat Resistaint
General Purpose Paint
Coil Coating
Can Coating
Aerosols
Paper Coating
Printin
Hammer Tone
Graveure Printing
